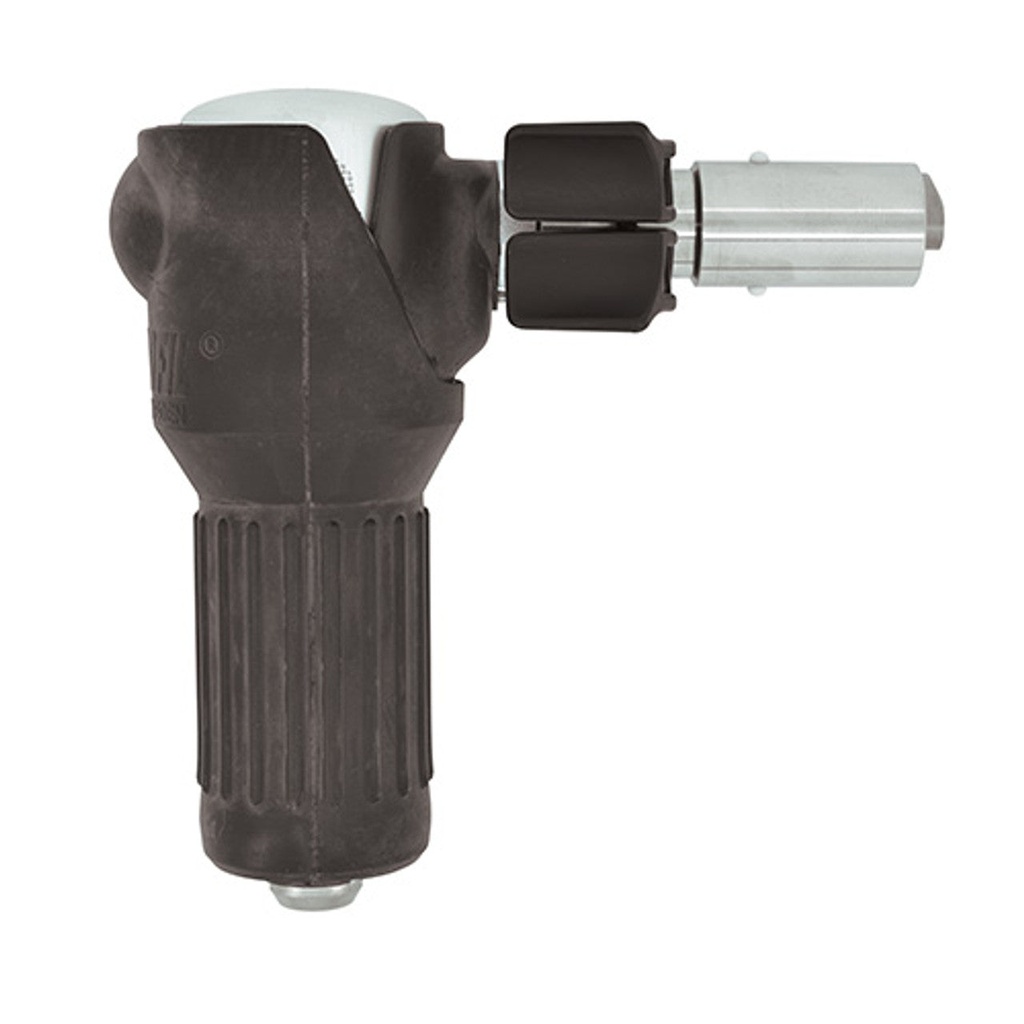

The flex shaft driven Di-Profiler is the tool maker’s traditional go-to machine for reciprocating applications. Connects to any standard Gesswein/ Foredom flexible shaft machine except models TXH, TXMH, and H.
Can be used for light and heavy duty polishing, filing, honing and lapping jobs. For best results and reduced vibration, operate between 5,000 and 7,000 RPM with a stroke length between 1-3mm.
Unit has a 1/4" chuck capacity.
Comes complete with operations guide, rubber sleeve, storage case, wrench and lubricating oil. Adjustable stroke length 0-6mm. 8,000 RPM Maximum.
| Specifications |
|
| Speed (Maximum): | 8,000 rpm |
| Speed (Recommended): | 5,000 - 7,000 rpm (depending on the weight of the tool being used) |
| Stroke Length: | 0 - 6 mm (recommended 0.5 - 3 mm). Please note: at stroke lengths exceeding 4mm a maximum speed of 5,000 rpm is recommended. |
| Collet Diameter: | 1/4" (6.4 mm) |
| Weight: | 21.7 ounces (615 grams) |
| Noise Level: | not exceeding 70 dB(A) at 6,000 rpm |
| Vibration Levels: | 4 - 12 m/s2 when operated according to the instruction manual |
