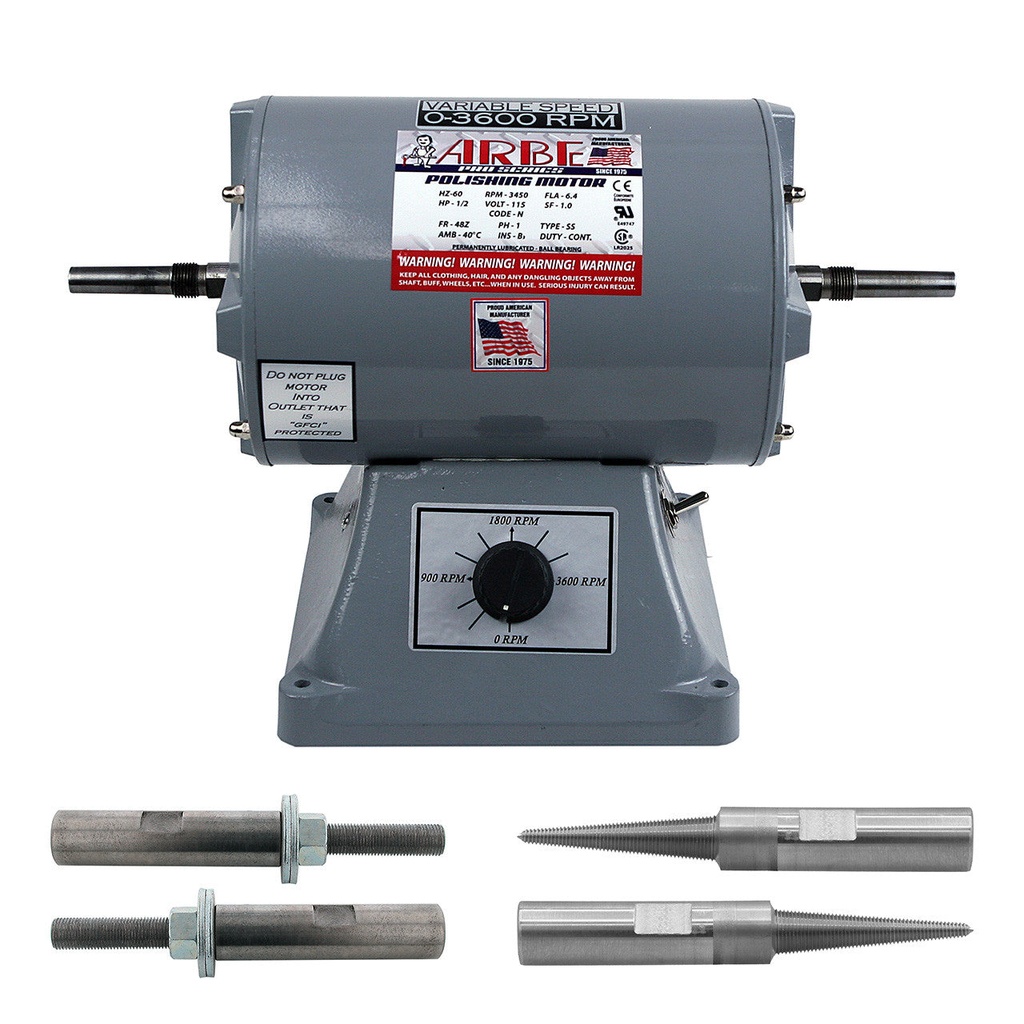

This ARBE Pro Series quality motor sits on a rubber framed resilient base to minimize excessive vibration. This 1/2HP, 2-spindle motor is variable speed, from 0-3,600 RPM. Comes supplied with tapered spindles as well as arbors for both right and left sides - which will hold wheels with 1/2" arbor holes. Made in the USA.
Overall width is 16"
Motor height is 11"
Height to center of shaft is 7" so it accommodates large diameter buffs (pin hole) and polishing wheels with a 1/2" arbor hole
Base measures 7.75" wide x 8.25" deep
Center of mounting holes measure 7" apart for the width and 7.375" for the depth
Electrical:110V, 60Hz, 1Phase
Note: as of March 2026, this motor does not fit in the Quatro SPU dust collecting units.
| Brand | Arbe |
| Country of Origin | United States of America |
| Electrical | 110V, 60Hz |
| Horse Power | 1/2 HP |
| Max RPM | 3,600rpm |
| Model | Double |
| Orientation | Double |
| Speed Control Type | Variable Speed |
