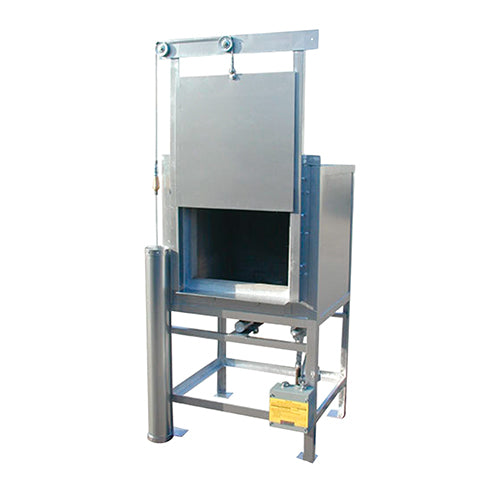

Gesswein is proud to offer guillotine style gas burnout furnaces. Gas is more economical to run as well as providing a cleaner burn out due to the airflow. With no heating elements to burn out, you have less down time and with over 40 years of proven reliability; these furnaces are what you need!
These furnaces are carefully designed to provide many years of virtually trouble-free use and are constructed out of heavy-duty steel with the highest quality firebrick interiors along with a 3” ceramic fiber door and ¼” thick door cable. All units are equipped with a triple port burner to reach the temperatures needed for the complete elimination of all wax necessary for a clean mold. Natural gas connections are standard, but propane is also a special-order option if desired.
New for 2025, all furnaces will have the Honeywell flame safety and Baso main gas valve installed on the furnaces. Consider adding a high limit protection package (our265-1399) and a wall mounted control panel (our 265-1394 operates one furnace, our 265-1396 operates 2 furnaces - if you need to operate 3 or more from the same control panel, please ask for a specific quote).
These furnaces are made to order and are customized for your specific use. Contact us to discuss your specific needs and we will prepare an exact price quote for your specifications. Made in USA.
All dimensions are in inches. Note: All furnaces (excluding the 26 x 26 model) can fit through a 28.5” door opening after you remove the furnace door and assembly. The model 26 x 26 requires a minimum door opening of 34.5”.
*Arched roof allows better flow of exhaust gases and even heat distribution standard due to the size of the furnace.
| Country of Origin | United States of America |
| Item Width | 23.5" |
| Item Height | 75.75" |
| Model | 12 x 12 |
| Use | 3x3 (16) or 4x6 (9) Flasks |
