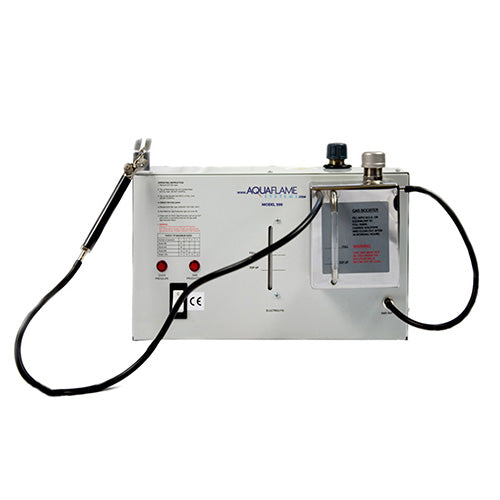

Aquaflame Soldering Torch Model 500

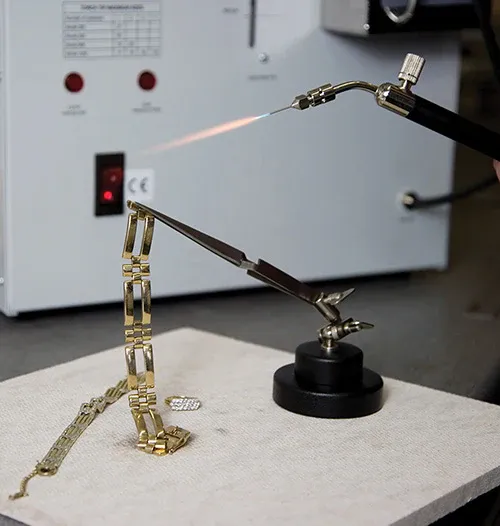

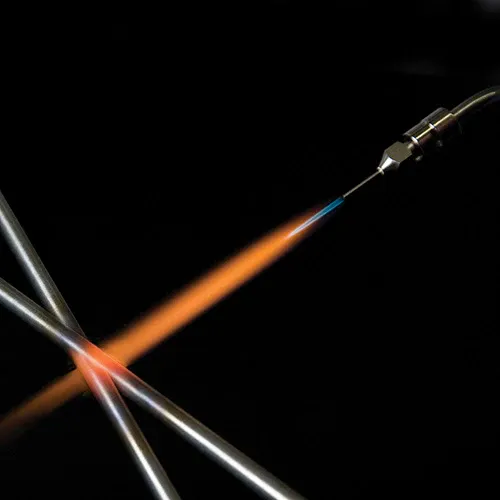

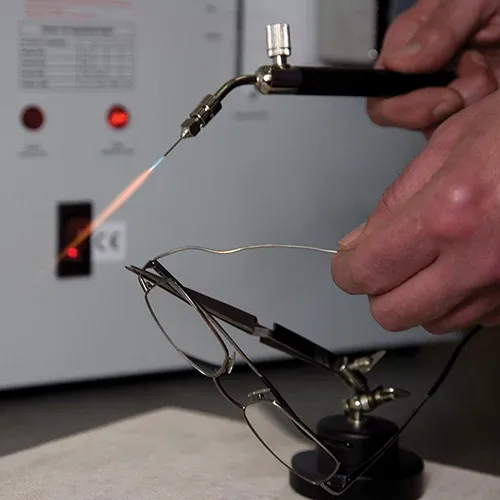

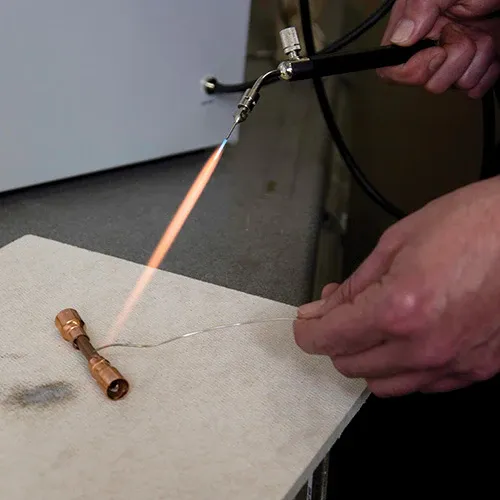

The Model 500 Aquaflame Torch is ideal for soldering Silver, Gold, Stainless Steel, and some Titanium Alloys.  Made of the highest quality components, the Aquaflame torch system is a complete soldering system—bottled gas with pressurized fuel tanks are a thing of the past. The powerful yet compact generator converts distilled/deionized water into hydrogen and oxygen gases by electrolysis. Minimal maintenance is required and to prove the exceptional construction and use, Aquaflame Torch Systems boast a full 2-year warranty!   A nice range of tips (from #20 which is a 0.60mm bore size to #24 which is 0.31mm) are supplied with the Model 500 unit to perform standard soldering tasks such as re-sizing or re-tipping.  The Aquaflame Torch system is a must for any jeweler/repair facility. Extensively used in the jewelry industry, Aquaflame Systems are also used in the dental and other technical manufacturing industries since they are ideal for precision soldering and micro welding.   The Model 500 can produce gas up to 75 liters/hour using 30ml of distilled water per day.  Reaches a maximum temperature of 3,300°C

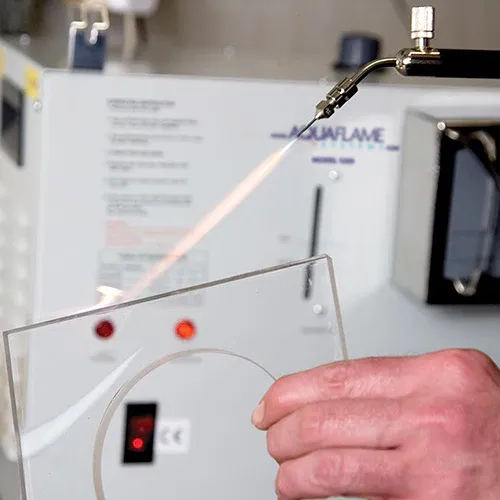

A clean precise environmentally friendly flame is obtained by using Methyl-Ethyl-Ketone (MEK). MEK leaves no residue on the surgical steel tips. This is far safer than the toxic/hazardous Methanol also known as Methyl Alcohol which is commonly used in other competitive torches. The operator will find the light-weight torch handle easy to hold and for safety, it contains a built-in Flashback Arrestor. When using liquid flux or flux-based paste solders, you will see less fire scale which is commonly found when working on silver. Aquaflame Torches are also widely used for acrylic flame polishing (edge polishing on acrylic) in plastic fabrication as this method requires no other materials or compounds and can finish intricate shapes quickly and easily.  The Model 500 can polish a 5mm thickness in one pass: 1 minute per meter.  Generally uses 0.50 kW of electricity.

Complete with 2-year manufacturer's warranty; however, since servicing required every 12 months, or 4,000 working hours, whichever comes first, for warranty to apply; we suggest purchasing the services kit see 830-1080 for Model 500.  Footprint measures 16"Lx8"Wx12"H (400mm x 200mm x 300mm).  Proudly made in the United Kingdom with CE approval.

Gas production: 75 lt/h

Distilled water use (per day): 30ml

Maximum flame temperature: 3300c

Electrical usage: 0.50 kW

Flash back fitted: Yes

Torch tips range supplied: 20 - 24

Torch tips bore size supplied (mm): 0.60 - 0.31

Service recommended period: 4000 working hours

Warranty period*:2 years

Length: 16" (400mm)

Width: 8" (200mm)

Height: 12" (300mm)

Shipping Weight:44lbs/18kg

Chemical for flame positioning: MEK

Thickness that can be polished in one pass: 5mm

Typical polishing times (per meter):1 minute

*Servicing required every 12 months for warranty to apply.
