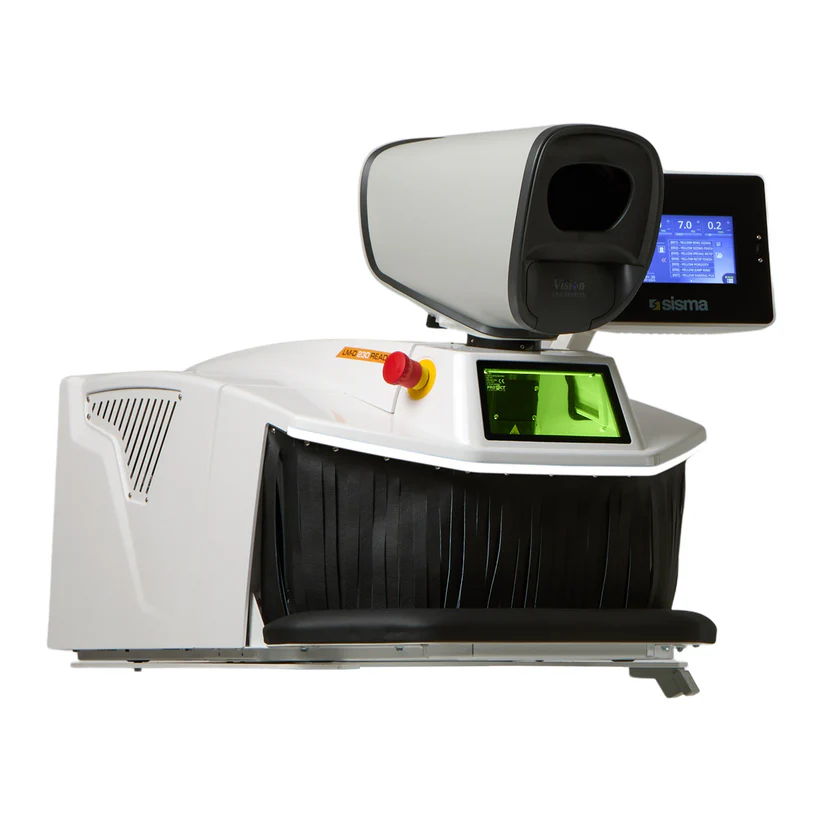

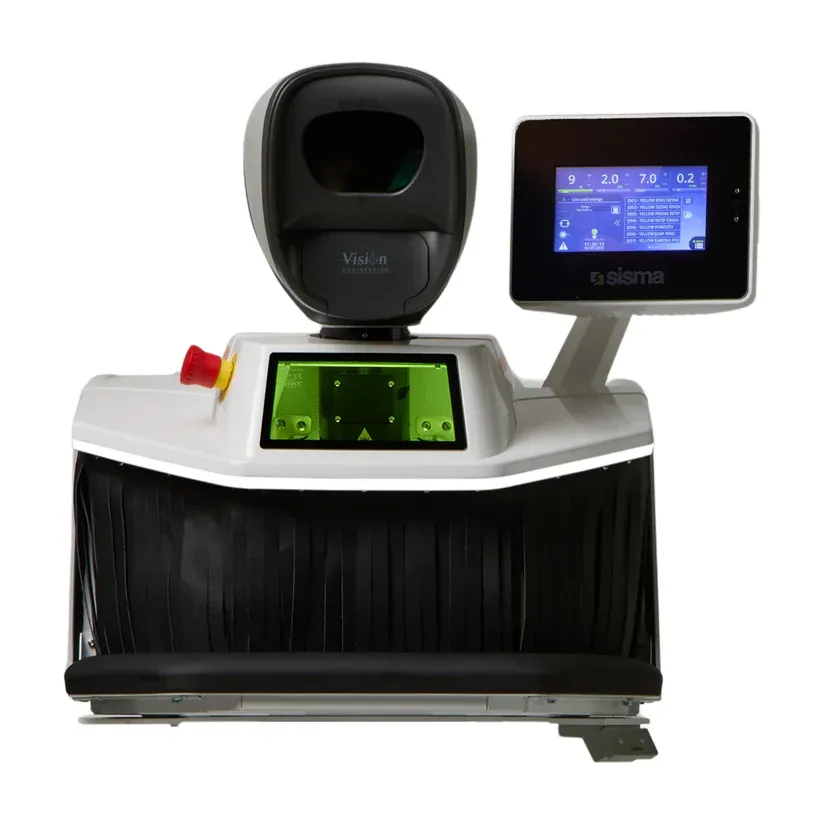

Sisma LM-D Ready 230 Lynx Flex Laser Welder

Desktop laser welding system designed for high precision processing of precious metals.  Equipped with a wide, flexible entry point; a 7" display screen and Lynx Dynascope optics which is an easy to share, 3D vision system providing a high-resolution view of the welding process while maintaining an ergonomic working posture.  Laser welder comes with a water-air cooling system as well as both air and argon connections. Average power 85 W, max pulse energy of 225 Joules, peak power 9 kW.   Warranty 24 months or 20 million shots on the lamp, 36 months on the balance of the machine.  All consumables are not included in the guarantee.   We also offer a model with the same specifications, utilizing standard stereo 10X microscope optics.

Key Features of the LM-D 230 Lynx Flex Ready:

• Easy access to the working chamber
• LYNX Dynascope 3D vision system: high resolution, easy-to-share, ergonomic working posture.
• Smart Spot technology maintains stable energy output delivering identical welds from the first pulse to the last
• Spot diameter 0.2-2 mm
• Pulse duration 0.5-25 ms
• Full 7" Touchscreen
• USB Connection / Ethernet / TeamViewer included to simplify and allow remote diagnostic capability
• Quick setting of welding parameters by means of the multifunctional mouse - can save up to 250 for future use
• Laser welder comes with a water-air cooling system, both air and argon connections, a filter for processing vapor and reclaiming precious metals as well as a protective cloth.
• Adjustable white LED light allows easy modifications to improve clarity or reduce glare

This LM-D Ready Lynx welder comes complete with:

• A water-air cooling system
• Both air and argon connections
