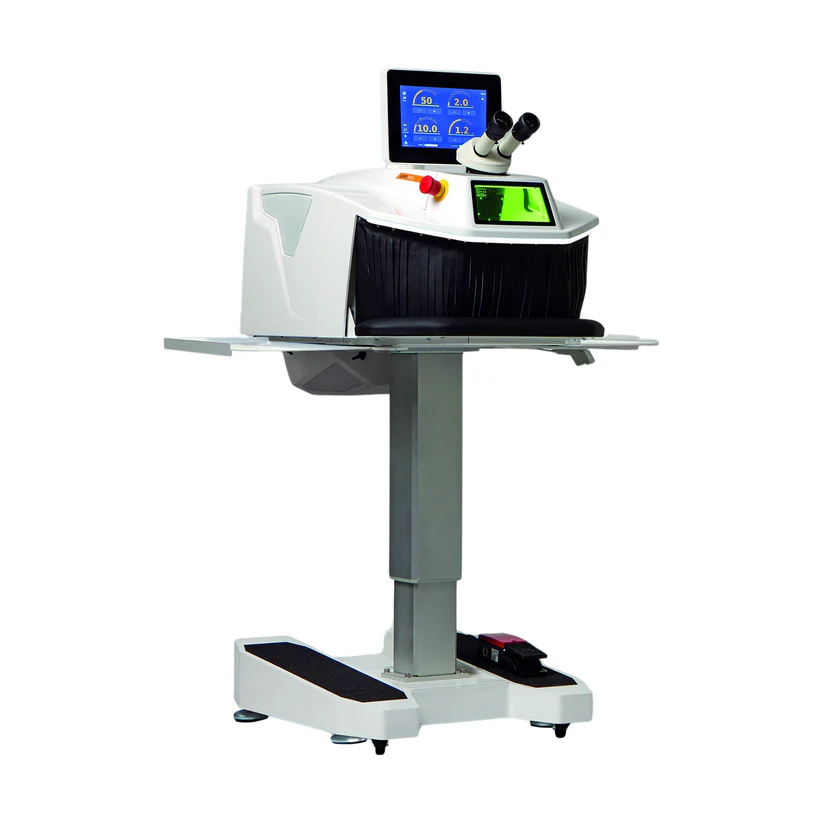

Sisma LM 300 Flex Nanospot Laser Welder

Freestanding laser welding system equipped with a wide front door, arm port access, a Lecia stereo 10X microscope with optical protection, and a 10.1" HD touchscreen display.  Laser welder comes with a water-air cooling system, both air and argon connections, a filter for processing vapor and reclaiming precious metals as well as a protective cloth.  Average power 110 W, max pulse energy of 300 Joules, peak power 11.2 kW.   Warranty 24 months or 20 million shots on the lamp, 36 months on the balance of the machine.  All consumables are not included in the guarantee.

Key Features of the LM 300 Freestanding Laser Welder:

• Easy access to the working chamber
• Smart Spot technology maintains stable energy output delivering identical welds from the first pulse to the last
• Spot diameter with Nanospot 0.05-2 mm
• Pulse duration 0.5-25 ms
• Power boost delivers short burst of high energy - useful when welding heavy materials.
• Leica Stereo 10X microscope with optical protection (optional 16X and 25X lenses are also available)
• Touchscreen 10.1” HD
• LED bar for optical indication of the machine operating status
• Adjustable white LED light allows easy modifications to improve clarity or reduce glare
• Quick setting of welding parameters by means of the multifunctional mouse - can save up to 250 for future use
• Customizable management of scheduled maintenance
• USB Connection / Ethernet / TeamViewer included to simplify and allow remote diagnostic capability

This free-standing laser welder comes complete with:

• A water-air cooling system
• Both air and argon connections
• A filter for dust recovery
• An electrical height adjustment (between 1250 and 1500mm)
• Set of temovable trays for table holder
• An air blow activation pedal
• A protective cloth
