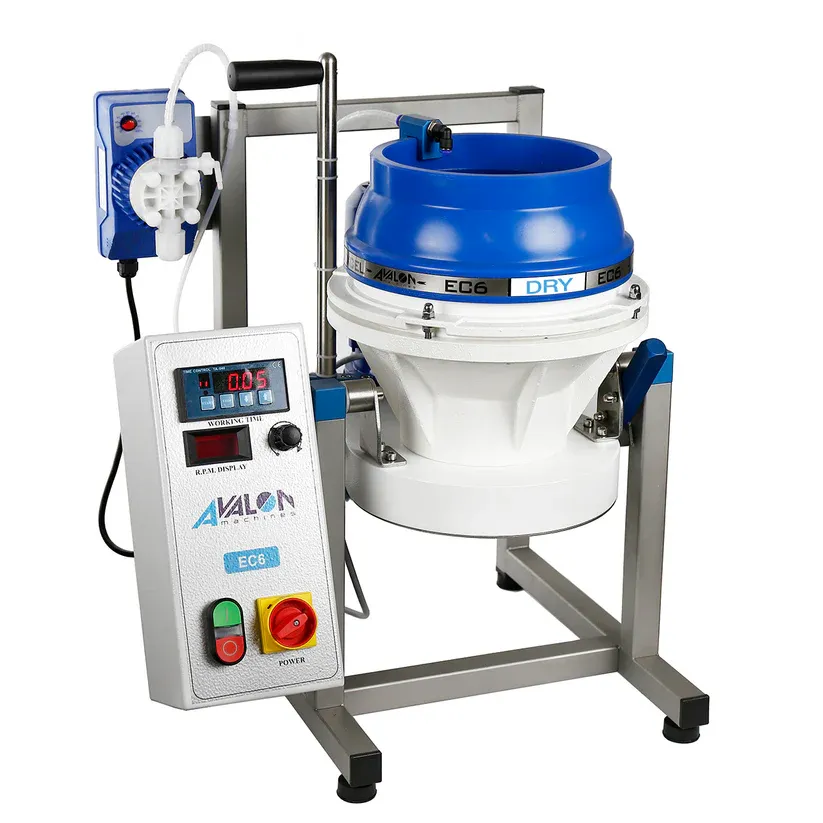

Avalon EC6 Dry Disc Finishing Machine

The Avalon EC6 dry disc finishing machine is designed for mass finishing of small workpieces (up to 0.5 kg at one time).  Used for deburring, radiusing, degreasing, cleaning, smoothing, brightening, polishing with walnut shell media and polishing pastes.   Working bowl capacity is 6 liters and the inner diameter is 210mm.

Advantages:

Compact desktop version which is suitable for small and medium factories

Optimized media movement and excellent processing results due to curved flow-optimized design of the working bowl

Processing of very thin pieces and trouble-free maintenance through use of a very precise gap system (0.05 mm upwards)

Tilted working bowl for easy unloading

Toroidal movement prevents pieces from sticking to each other and results in targeted material erosion

Processing time is several times shorter comparing to Vibratory Machines

Reliability and durability - polyurethane lining of the working bowl is extremely wear-resistant (8 times higher than steel)

Specifications:

Dimensions:  20.6"W x 19.1"D x 27.6"H

Voltage:  110/230V, 1 Phase, Dual Voltage

Working Bowl Diameter:  8.25" / 210mm

Capacity: 6 liters

Shipping Weight: 97 lbs / 44 kg
