Avalon TE18 Wet Disc Finishing Machine

The Avalon TE18 wet disc finishing machine is designed for mass finishing of up to 2 kilograms of small workpieces.  Used for deburring, radiusing, degreasing, cleaning, smoothing, brightening, polishing with media such as ceramic, plastic and porcelain chips as well as stainless steel shot.  Working bowl capacity is 18 liters and the inside diameter of the working bowl is 320mm.

Advantages:

Robust stainless steel welded frame with integrated manual separating unit

Optimized media movement and excellent processing results due to curved and flow-optimized design of the working bowl

Processing of very thin pieces and trouble-free maintenance through use of a very precise gap system (0.05 mm upwards)

Tilted working bowl for easy unloading

Toroidal movement prevents pieces from sticking to each other and results in targeted material erosion

Processing time is several times shorter comparing to Vibratory Machines

Reliability and durability - polyurethane lining of the working bowl is extremely wear-resistant (8 times higher than steel)

Specifications:

Dimensions:  18.1"W x 35.8"D x 70.8"H

Voltage:  110/230V, 1 Phase, Dual Voltage

Working Bowl Diameter:  12.6" / 320mm

Capacity: 18 liters

Shipping Weight: 273.3 lbs / 124 kg

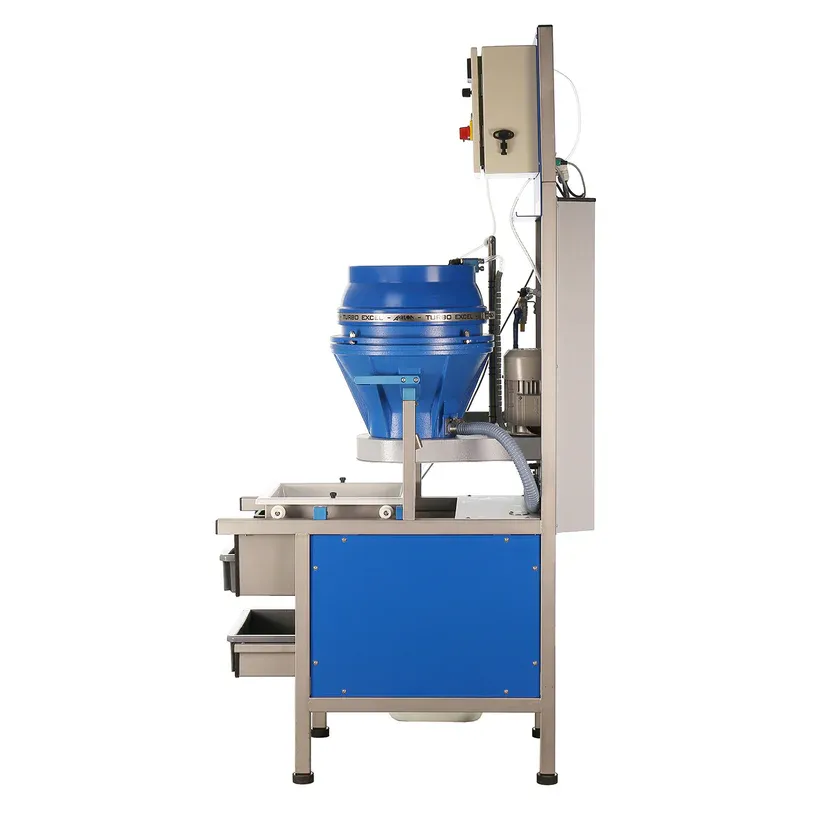

Please note, image shows disc finisher with optional separator.
