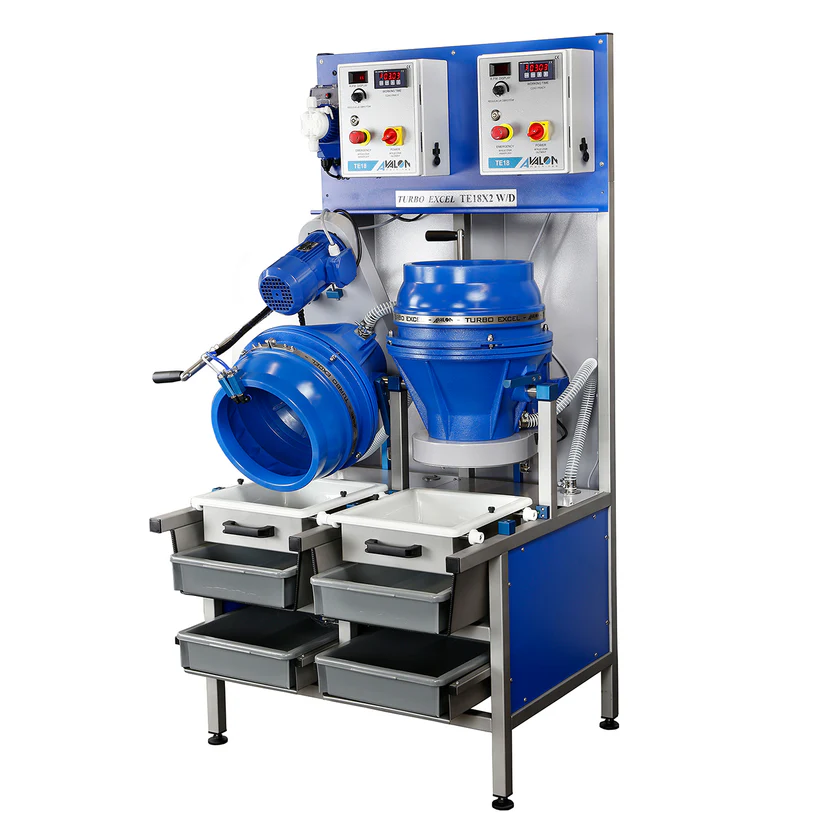

Avalon TE18x2 Combination Wet & Dry Disc Finishing Machine

The Avalon TE18x2 disc finishing machine incorporates two bowls and is designed for mass finishing of up to 2 kilograms of small workpieces in each bowl.  Used for deburring, radiusing, degreasing, cleaning, smoothing, brightening, polishing with media such as ceramic, plastic and porcelain chips as well as stainless steel shot or for use with walnut shell media and polishing pastes. Each working bowl capacity is 18 liters and they have an inside diameter of 320mm. Generally provided with one wet bowl and one dry bowl, you can specify if you want to have both wet or both dry at the time of order.

Advantages:

Suitable for multiple-stage processes

Robust stainless steel welded frame with integrated manual separating unit

Optimized media movement and excellent processing results due to curved and flow-optimized design of the working bowl

Processing of very thin pieces and trouble-free maintenance through use of a very precise gap system (0.05 mm upwards)

Tilted working bowl for easy unloading

Toroidal movement prevents pieces from sticking to each other and results in targeted material erosion

Processing time is several times shorter comparing to Vibratory Machines

Reliability and durability - polyurethane lining of the working bowl is extremely wear-resistant (8 times higher than steel)

Specifications:

Dimensions:  35"W x 35.83"D x 70.8"H

Voltage:  110/230V, 1 Phase, Dual Voltage

Working Bowl Diameter:  12.6" / 320mm (2 Bowls)

Capacity: 18 liters (2 Bowls)

Shipping Weight: 519 lbs / 235 kg

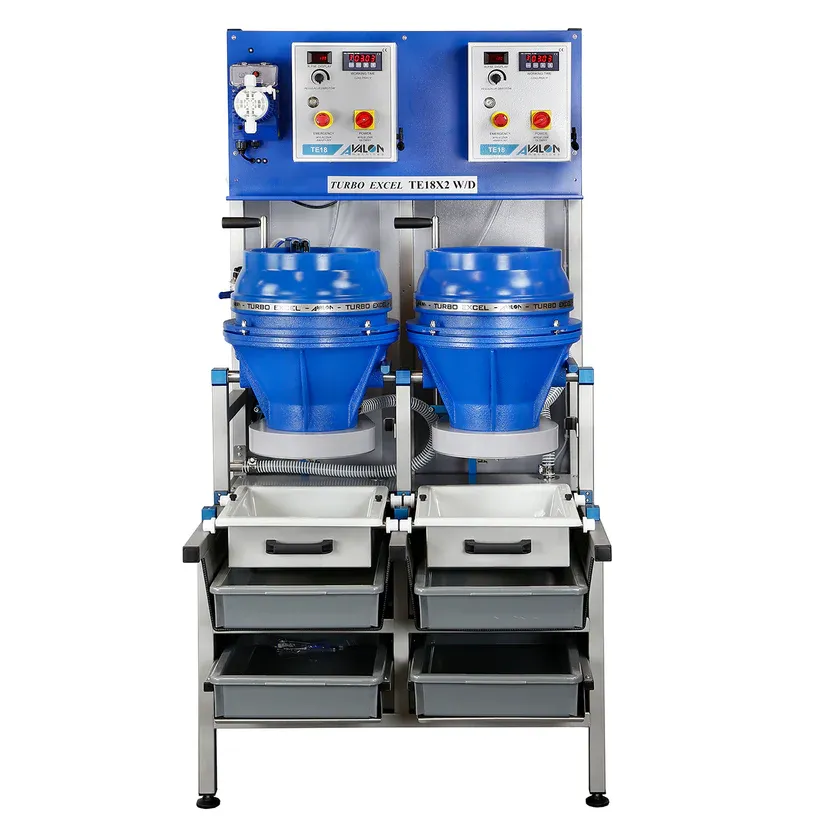

 Please note, image shows disc finisher with optional separator.
